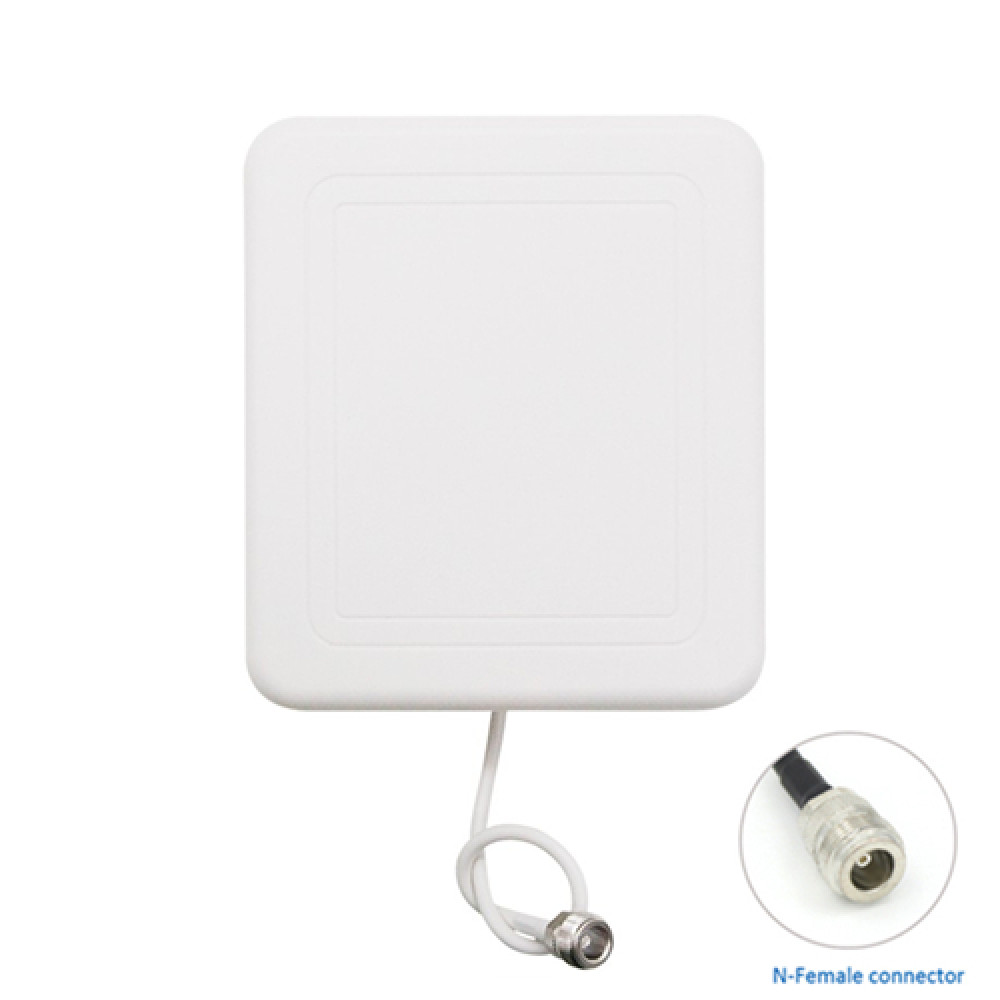

This 800~2700mhz 10 Dbi High Gain Panel Antenna is High Performance Directional Panel Antenna. The Antenna is Made of Abs Plastic and is Designed to Attach to an Interior Wall. A Wall Mounted Antenna Projects Signal in Front of It, and So Should Be Placed Facing the Area Where You Wish to Increase Signal.
Low Profile Aesthetically Neutral Housing.
Ip65 Rated Weatherploof Ingression Protection.
For Use Inside or Outside Commercial Buildings, Offices and Homes.
Frequency Range 800 ~ 2700mhz. Support Gsm/dcs/umts/cdma/wcdma/lte/2g/3g/4g.
Attractive, Compact Design and Form Factor Ideal for Outdoor Solution Applications.
Receives Outside Signal From a Cell Phone Tower and Directs It to a Cell Phone Signal Booster.
Frequency Range: 800 ~ 2700mhz
Beamwidth Horizontal Plane: 65° (Average)
Beamwidth Vertical Plane: 55° (Average)
Nominal Impedance: 50ohms
Max Input Power: 50w
Connector: N Female
Cable Type: Rg58
Operated Temperature: -40 ~ 60°c
Cable Length: 150mm
Size: 55 * 150 * 170mm
Weight: 0.28 Kg
1 * 10dbi Panel Antenna
1 * Wall Bracket
Warranty : 2 Week
7 Days One to One Exchange if the Goods Are Damaged in Shipping
