11dBi 824~960mhz N Male Outdoor Yagi Antenna - 10m

11dBi 824~960mhz N Male Outdoor Yagi Antenna - 10m

| 0 reviews
RM99.75 RM200.00
50% OFF
SKU: 1594824474117
Item left 2
Sold By CHMOBILECAM
Warranty 7 Day Warranty
Weight 2.40 Kg
Shipping
Gvado Standard DeliveryStandard Delivery

logoONLY release payment to the merchants after the items were received by the buyers.

Share

CHMOBILECAM

VISIT SHOP

Products

459

Ratings

ASK SELLER

Price Drop Notifications

NOTIFY ME

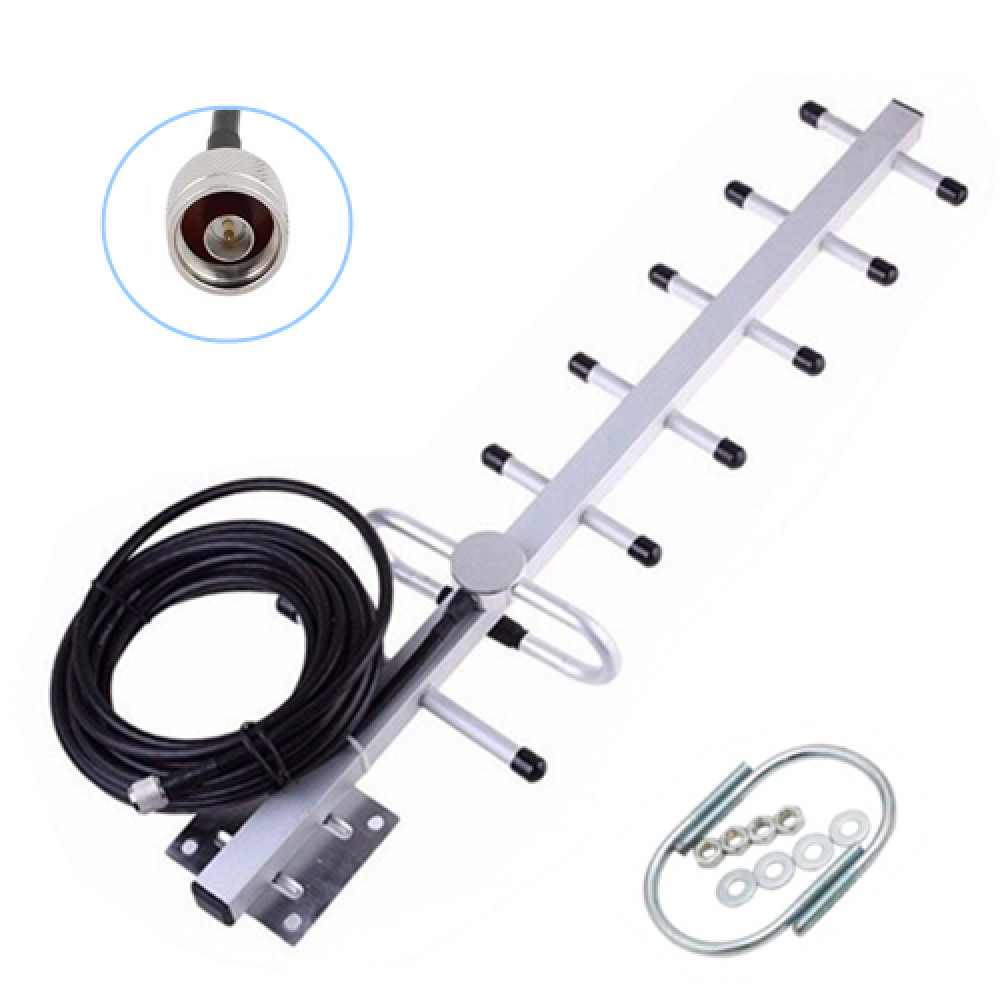

The Yagi Antenna is Designed for Use in Gsm/gprs Systems Working in 824-960mhz. Light Aluminium Alloy Duty Yagi and Cable Are Factory Assembled and Adjusted for Easy Installation.


Highlight

  • Frequency Range Gsm/gprs 824~960mhz.
  • For Use Outside Commercial Buildings, Offices and Homes.
  • Aluminum Construction, Light Weight, All Weather Operation.
  • Attractive, Compact Design and Form Factor Ideal for Outdoor Solution Applications.
  • Receives Outside Signal From a Cell Phone Tower and Directs It to a Cell Phone Signal Booster.
  • Designed Together With the Cable in Order to Reduce the Loss of the Signal and It Can Be Installed Easily.


Functional Description

  • Gain: 11dbi
  • Material: Aluminum
  • Frequency Range: 824~960mhz
  • Polarization: Horizontal
  • Beamwidth Horizontal Plane: 76°f ± 5°f
  • Beamwidth Vertical Plane: 72°f ± 5°f
  • Nominal Impedance: 50ohms
  • Max Input Power: 50w
  • Connector: N Male
  • Cable Type: Rg58
  • Operated Temperature: -40 ~ 140°c
  • Cable Length: 10m
  • Size: 6*16*57cm
  • Weight: 0.45kg


Packing Included

  • 1 * 11dbi Yagi Antenna
  • 2 * U-bolt Bracket


Warranty : 2 Week

  • 7 Days One to One Exchange if the Goods Are Damaged in Shipping


Call/ Sms/ Whatsapp

  • Mr.Wong : +6012-8822600 / +6018-4089135
