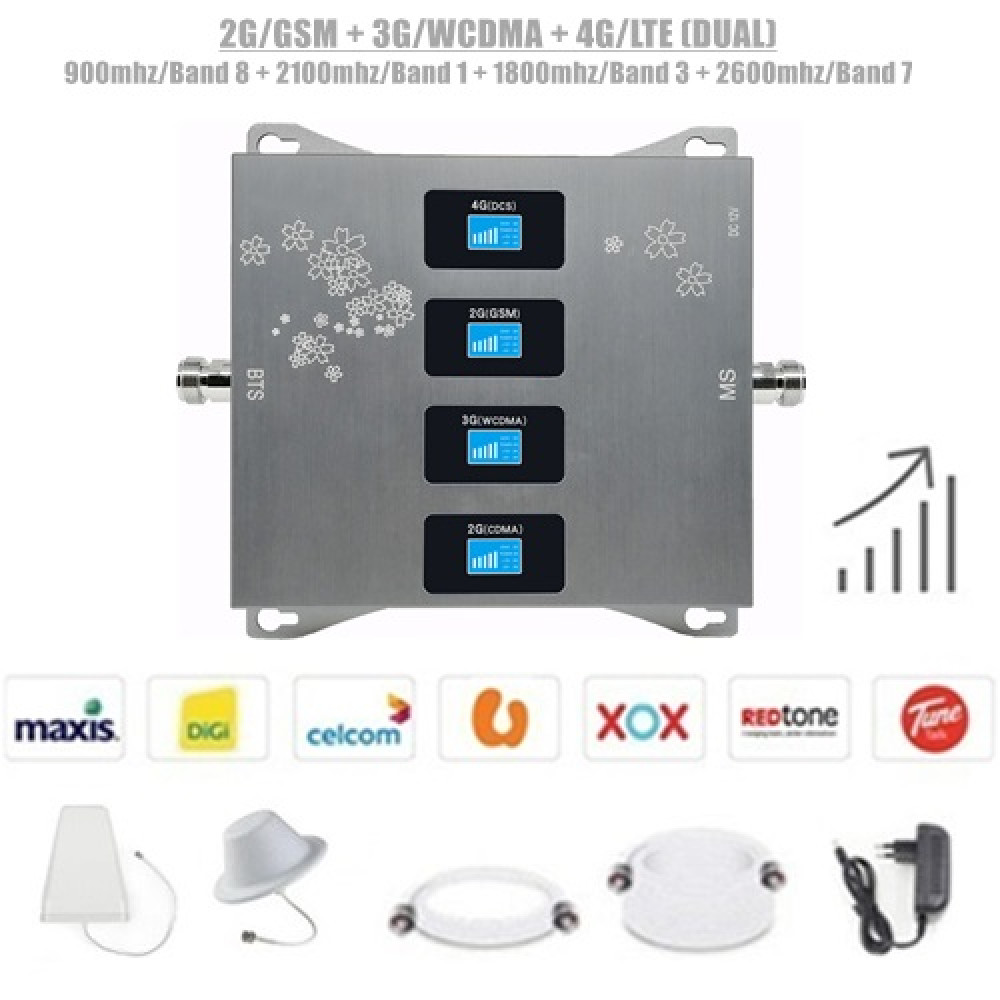

2G/GSM 3G/WCDMA 4G/LTE Band 8,1,3,7 Quad Band Mobile Signal Booster Repeater

Mobilephone Signal Booster is a Device Used for Boosting the Cell Phone Reception to the Local Area by the Usage of a Reception Antenna, a Signal Amplifier, and an Internal Antenna. These Are Similar to the Celular Broadcast Towers Used for Broadcasting by the Network Providers, but Are Much Smaller, Usually Intended for Use in One Building.

Highlight

• 2g/900mhz Band 8 + 3g/2100mhz Band 1 + 4g/1800mhz Band 3 + 4g/2600mhz Band 7 Quad-band Repeater.
• Improve Your Mobile Signal. No More Bad Reception. No More Dropping Calls.
• Expand Signal Coverage Where Signal is Weak. Suitable for Home & Office Use.
• Diy Easier for Installation. You Just Need to Connect the Wires That You Have.
• Each Indoor Antenna Can Cover About 500 Square Meters (Open Space). Each Repeater Can Install Up to 3 Indoor Antennas.
• Support Malaysia Mobile Operator Voice + Sms + Data. Maxis, Hotlink, Celcom, Digi, Umobile, Xox, Redone, Yoodo, Tunetalk Etc.

Functional Description

• Model: 2g 3g 4g Quad Band Booster(Band 8,1,3,7)
• Color: Silver
• Gain: Up 65±3db; Down 70±3db
• 2g/gsm Frequency Range: (Upload 890~915mhz, Download 935~960mhz)
• 3g/wcdma Frequency Range: (Upload 1920~1990mhz, Download 2110~2180mhz)
• 4g/lte Frequency Range: (Upload 1710mh~1785mhz, Download 1805mhz~1880mhz)
• 4g/lte Frequency Range: (Upload 2500~2570mhz, Download 2620~2690mhz)
• Impedance: 50ohm
• Seclusion: >70db
• Max Output Power: +23dbm
• Connector Type: F Female
• Operating Temperature: -10 ~ 55 Degree
• Power by: Ac 110/220v; Dc 12v
• Repeater Size: 25 * 174 * 205mm
• Repeater Weight: 0.98kg

Package Included

• 1 * Band 8,1,3,7 Quad Band Repeater
• 1 * Outdoor Lpda Antenna
• 1 * Indoor Ceiling Antenna
• 1 * 5 Meter Coxial Cable
• 1 * 10 Meter Coxial Cable
• 1 * Mounting Hardware
• 1 * Power Supply
• 1 * User Menual

Pls Note

• Please Check Which Frequency Band Your Area Belongs to Before Purchase. Such as the Repeater You Purchased is Band 8,1,3,7. If Your Area Band 8,1,3,7 is Not Available, It Cannot Be Used. Because There Are Band 1,3,5,7,8,20,28,38,40 in Malaysia.
• For Single-band Repeater if Your Phone or Operator Does Not Support Volte is Not Recommended Purchase. Because Whether You Make or Receive a Call. Your Cell Phone Signal Will Drop From 4g to 3g or 2g Signal. Therefore We Recommend That You Purchase a Tri-band or Quadband Repeater.

How to Choose Signal Booster?

• Android Mobile Download App "Network Cell Info Lite"
• Iphone Mobile Dial: *3001#12345#* → Serving Cell Info → Freq Band Indicator

Installation Approaches

• 1) Fix Up Outdoor Antenna on Housetop or Outside the Window and Point It to the Signal Tower.
• 2) Connect Outdoor Antenna to "Bts" Port in Repeater Machine Through Cable.
• 3) Plug Power Adaptor Into Ac Power Socket.
• 4) Please Adjust the Direction of the Outdoor Antenna, Until the Signal Booster Have a Good Signal,  It is Very Important.
• 5) Connect Indoor Antenna(S) to "Mobile" Port in Repeater Machine Through Cable Also.
• 6) Please Ensure the Outdoor and Indoor Antennas Have Distance of 10 Meters at Least, With a Wall Between and Not in a Same Horizontal Line.

Faq

• Q: My Outside Signal Only Has 1 Bar. The Booster Can Bring Me Signal?
• A: Yes, It Can.

• Q: if There is a Signal at 1 Km From My Home, is It Available?
• A: Yes It Can. You Just Need to Install the Outdoor Antenna at the Highest Place. The Furthest Received Signal Distance Can Reach Within 2km.

• Q: is This Repeater Set Hard to Install?
• A: No is Very Easy. All the Accessories We Have Assembled and Tested for You. After Receiving the Goods. You Just Need to Connect the Wires That You Have. Plug in the Power Then Can Be Used Immediately.

Warranty : 3 Month

• 7 Days One to One Exchange if the Goods Are Damaged in Shipping
