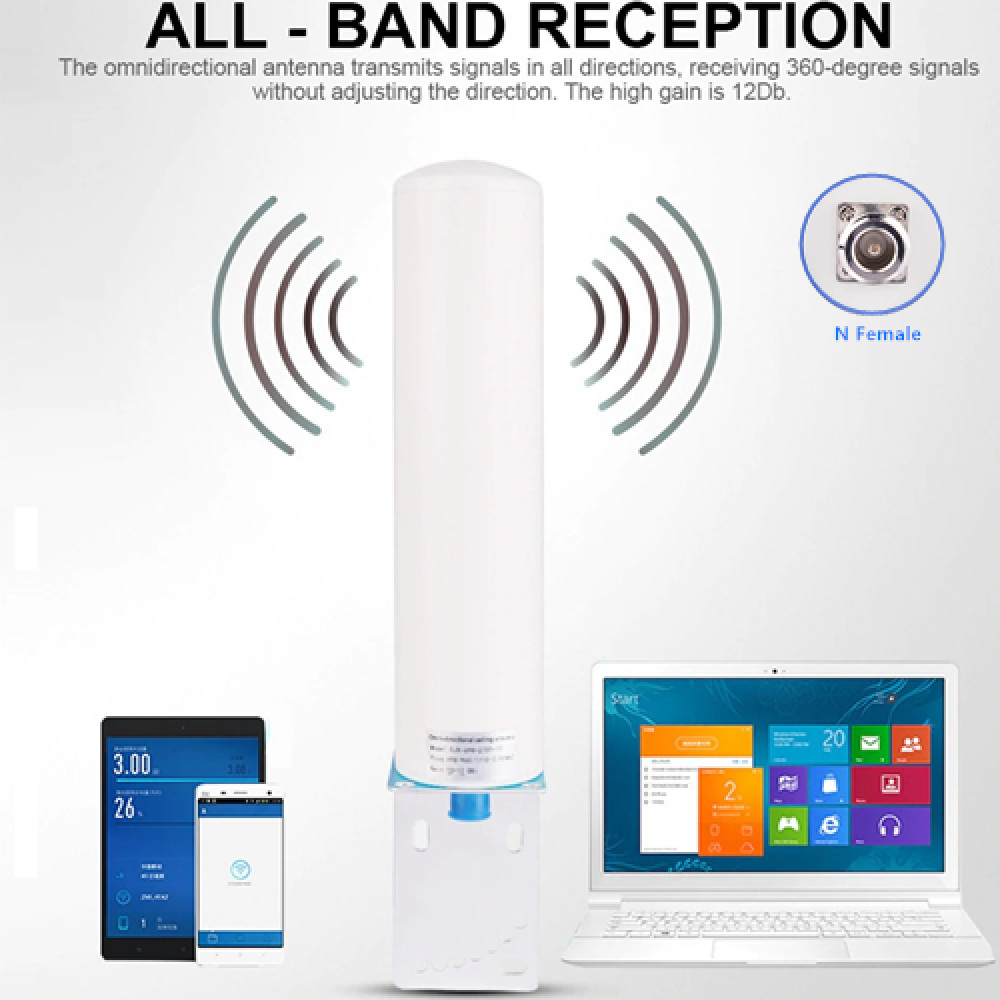

12dBi 700~2700mhz N Female Omni-Directional Antenna

Outdoor Omni-directional Antenna Operates in the 700~2700mhz and Provides 10~12dbi Omni-directional Operation, Which Largely Extends the Wireless Range and Delivers Much Better Wireless Performance. The Antenna Offers the N Female Connector Guaranteeing Wider Compatibility With Most of the Wireless Equipments. Also, the Weather Proof Design Ensures That It Can Work Normally for Various Demanding Outdoor Solutions. 360 Degree Radius, Delivering a Strong Multidirection Signal From an Access Point or a Bridge.

Highlight

• Low Profile Aesthetically Neutral Housing.
• Ip65 Rated Weatherploof Ingression Protection.
• For Use Outside Commercial Buildings, Offices and Homes.
• Frequency Range 700 ~ 2700mhz. Support Gsm/dcs/umts/cdma/wcdma/lte/2g/3g/4g.
• Attractive, Compact Design and Form Factor Ideal for Outdoor Solution Applications.
• Receives Outside Signal From a Cell Phone Tower and Directs It to a Cell Phone Signal Booster.

Functional Description

• Color: White
• Material: Abs
• Gain: 12dbi
• Frequency Range: 700 ~ 2700mhz
• Polarization: Vertical
• Beamwidth Horizontal Plane: 360° (Average)
• Beamwidth Vertical Plane: 75° (Average)
• Nominal Impedance: 50ohms
• Max Input Power: 50w
• Connector: N Female
• Operated Temperature: -40 ~ 60°c
• Size: Dia 65 * 250mm
• Weight: 0.23kg

Packing Included

• 1 * 12dbi Omni-directional Antenna
• 1 * U-bolt Bracket

Warranty : 2 Week

• 7 Days One to One Exchange if the Goods Are Damaged in Shipping

Call/ Sms/ Whatsapp

• Mr.Wong : +6012-8822600 / +6018-4089135
