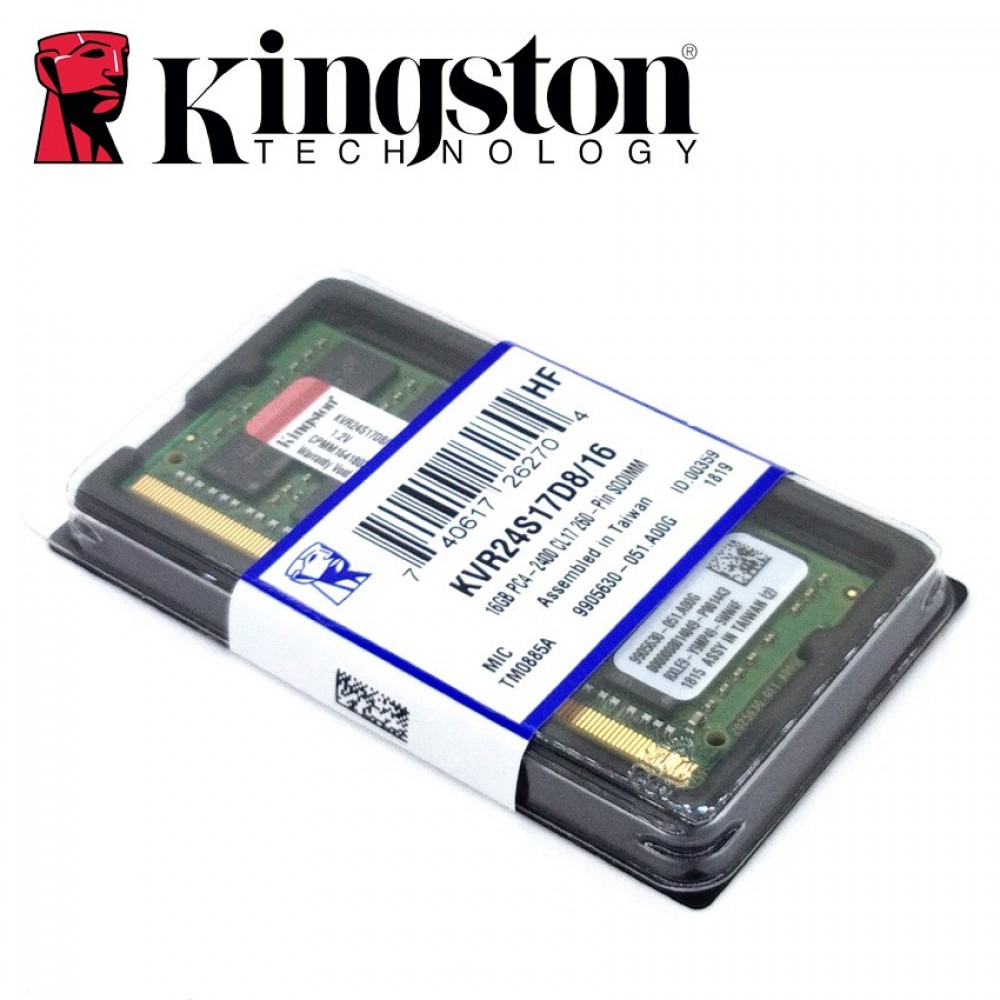

Official Kingston KVR24S17D8/16 16GB DDR4 2400Mhz Laptop Memory Ram (T12-12-7)


RM680.10

Brand: Kingston
SKU: Kingston KVR24S17D8/16 16GB
Item left 4

Sold By BLSHOP
Warranty N/A

Weight 0.30 Kg
Shipping
Gvado Standard DeliveryStandard Delivery


logoONLY release payment to the merchants after the items were received by the buyers.

Share

BLSHOP

VISIT SHOP

Products

1772

Ratings

ASK SELLER

Price Drop Notifications

NOTIFY ME


100% Original By Kingston Malaysia & New Stock

Life Time Warranty Local Manufacturer Warranty

FEATURES

• Power Supply: VDD=1.2V Typical

• VDDQ = 1.2V Typical

• VPP - 2.5V Typical

• VDDSPD=2.2V to 3.6V

• Nominal and dynamic on-die termination (ODT) for

 data, strobe, and mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation and calibration

• Dual-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8

 via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command and address bus

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free


DESCRIPTION

This document describes ValueRAM's 2G x 64-bit (16GB)

DDR4-2400 CL17 SDRAM (Synchronous DRAM), 2Rx8, non-ECC,

memory module, based on sixteen 1G x 8-bit FBGA components.

The SPD is programmed to JEDEC standard latency DDR4-2400

timing of 17-17-17 at 1.2V. This 260-pin DIMM uses gold contact

fingers. The electrical and mechanical specifications are as follows:
