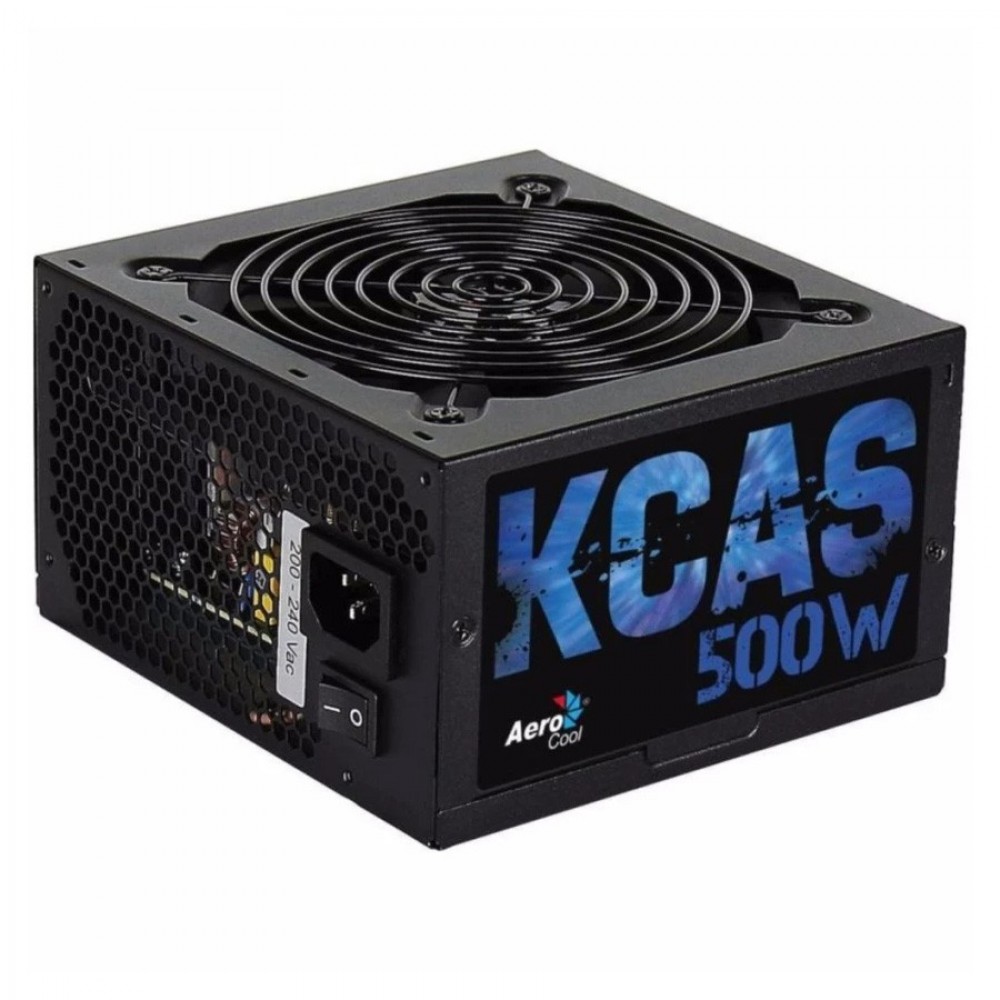

Official AeroCool KCAS 500w 80 Plus Bronze Power Supply


RM198.15

Brand: OEM
SKU: Official AeroCool KCAS 500w 80 Plus Bronze Power Supply
Item left 5

Sold By BLSHOP
Warranty N/A

Weight 0.40 Kg
Shipping
Gvado Standard DeliveryStandard Delivery


Share

BLSHOP

VISIT SHOP

Products

1802

Ratings

ASK SELLER

Price Drop Notifications

NOTIFY ME


2 Years Local Manufacturer Warranty

100% Original by AeroCool Malaysia & New Stock

Uncompromised real 500W DC output.

Elegant Black PSU casing with Fully Black Mesh cables.

Compliant with ATX12V Ver.2.3.

Support latest INTEL 4th generation “HASWELL” CPU with C6/C7 power saving mode.

Up to 85%+ efficiency with official 80Plus Bronze certificate.

Single 12V rail for high compatibility and extreme high current output.

20+4P and CPU 4+4P cable length up to 550mm - easy reach to all components.

All DC cables with mesh sleeving for optimized airflow and management.

Two PCIe 6+2pin connector for mid-range graphic card.

Up to 7 SATA connectors supports multiple of hard drives.

12cm silent black fan with smart thermal fan speed control circuit.

Complete protections with OVP/UVP/OPP/SCP/SIP.

Safety and EMC certified by CE and TUV.

ECO friendly with RoHS and Erp 2013 directives.


The KCAS power supplies, with 80 Plus Bronze certification, will provide your team with all the power needed to function optimally.


Specifications

Ports and Interfaces

Power supply for motherboard: 20 + 4 pin ATX

Number of SATA power connectors: 7

PCI Express power connectors (6 + 2 pin): 1

CPU power connector (4 +4 pins): Yes

Floppy power connector: 1

Energy control

Total power: 500 W

AC input voltage: 115 - 230 V

Input current: 3.5 - 7.5

Maximum input current (@ 110V): + 12V, + 3.3V, + 5V, + 5Vsb, -12V

Combined power (3.3 V): 130 W

Combined power (+12 V): 444 W

Combined power (+5 V): 130 W

Combined power (-12V): 4.8 W

Combined power (+5 VSB): 12.5 W

Maximum output current (+ 3.3V): 20 A

Maximum output current (+ 12V): 37 A

Maximum output current (+ 5V): 20 A

Maximum output current (-12V): 0.4 A

Maximum output current (+ 5Vsb): 2.5 A

Efficiency: 85%

Power protection functions: Over current, Overvoltage, Overheat, Overload, Short circuit

Regulatory approvals

80 PLUS Certification: 80 PLUS Bronze

RoHS Chord: Yes

Cooling

Fan diameter: 12 cm

Number of fans: 1 fan (s)

Cooling type: Active

Design

Color of product: Black

Performance

Form factor: ATX

Use with: PC

ATX version: 2.3
