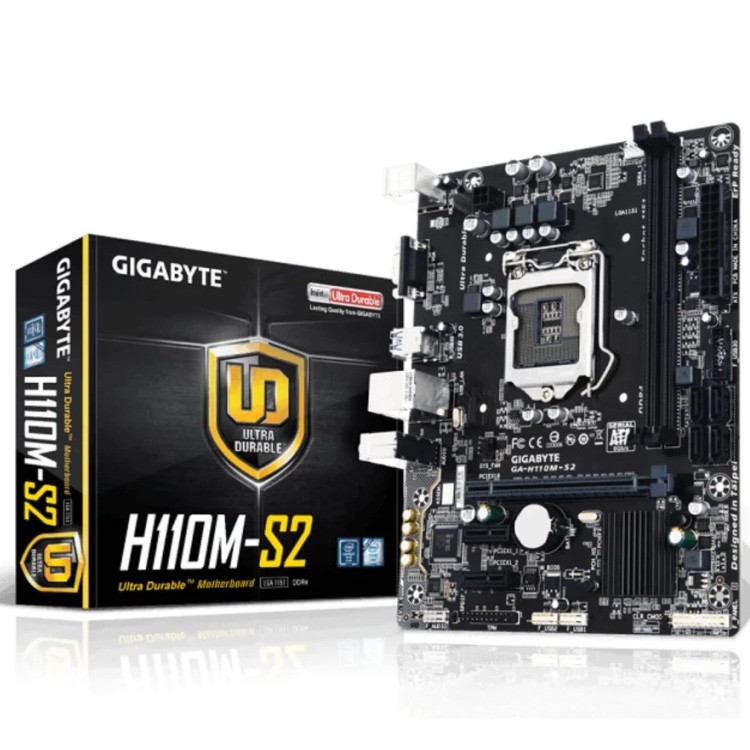

Offcial Gigabyte GA-H110M-S2 DDR4 LGA1151 Mainboard


RM223.35

Brand: Gigabyte
SKU: GA-H110M-S2 DDR4 LGA1151 Mainboard
Item left 53

Sold By BLSHOP
Warranty N/A

Weight 0.50 Kg
Shipping
Gvado Standard DeliveryStandard Delivery


Share

BLSHOP

VISIT SHOP

Products

1802

Ratings

ASK SELLER

Price Drop Notifications

NOTIFY ME


3 Years Local Manufacturer Warranty


Product details of Gigabyte GA-H110M-S2 DDR4 Mainboard


CPU


Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

* For 7th Generation Intel® Core™ processors support .

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset


Intel® H110 Express Chipset

Memory


2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics


Integrated Graphics Processor - Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Maximum shared memory of 1024 MB

Audio


Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN


Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots


1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface


Chipset:

4 x SATA 6Gb/s connectors

USB


Chipset:

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors


1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x Clear CMOS jumper

Back Panel Connectors


1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x D-Sub port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller


iTE® I/O Controller Chip

H/W Monitoring


System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.
